K-P™ Heavy Duty Solid Case Horizontal Pump

A versatile pump with the ability to be adapted to suit several applications. Can significantly reduce power consumption, lower operational costs and increase production.

The K-P™ heavy duty solid case horizontal slurry pumps range in size from 25mm (1”) to 250mm (10”). The all-metal unlined pump range integrates our advanced pump upgrade wet end wear components. The casing, impeller and liner have been optimised to provide low wear while delivering outstanding efficiency over a wide range of medium to heavy slurry applications. With many unique features, the K-P™ pump is easy to maintain and is designed to offer the lowest cost of ownership.

SPECIFICATIONS

  • Range: 25 mm (1”) to 250 mm (10”)
  • Flows to: 2,000 m³/h (8,806 USgpm)
  • Heads to: 85 m (278 ft)
  • Pressures to: 700 kPa (101 psi)

APPLICATIONS



  • Mineral processing
  • Chemical processing
  • Coal preparation
  • Effluent handling
  • Gravel & sand



FEATURES

  • Modular design for ease of maintenance
  • Heavy duty one piece volute casing with lifting points for easy maintenance
  • Standard or advanced K-IBA™ bearing assembly improves reliability to extend bearing life reduce lubrication costs
  • Shaft sealing for increased reliability, stuffing box, expeller, K-ES™ elevated seal or K-ISS™ mechanical seal options available
  • Standard or advanced K-HEE™ impeller design options available
  • Single piece sleeve for stuffing box sealing, lowers stock holding and maintenance
  • Segmented volute clamp ring allows casing rotation to any required position
  • Casings fitted with inspection/flushing hole as optional extra
  • Multi-purpose design allows for reduced inventory requirements and interchangeability
  • Belt guards allows for ease of maintenance and inspection of belt condition

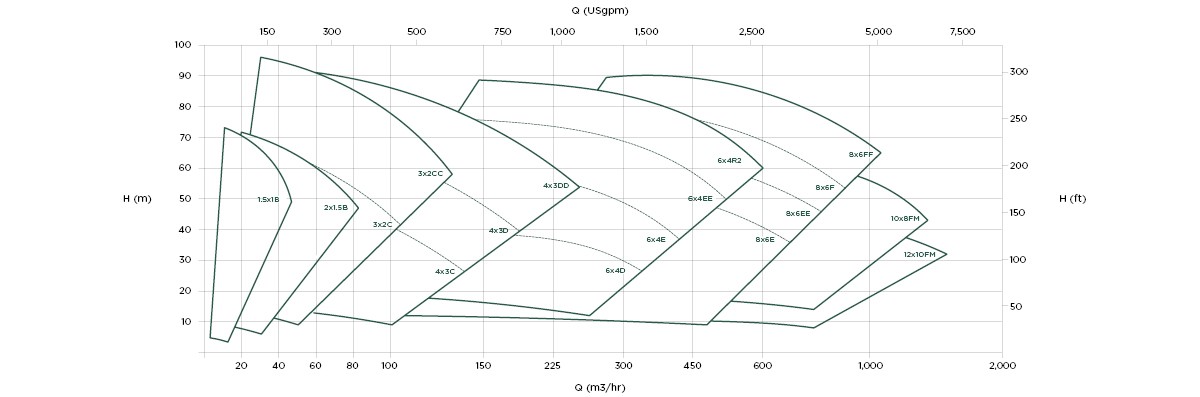

K-P™ Series Coverage Chart
