K-MP™ Heavy Duty Solid Case Horizontal Pump

A versatile pump with the ability to be adapted to suit several applications. Can significantly reduce power consumption, lower operational costs and increase production.

The K-MP™ heavy duty solid case horizontal slurry pumps range in size from 50mm (2”) to 150mm (6”). The pump range integrates our advanced pump upgrade wet end wear components. The casing, impeller and frame plate liner have been optimised to provide low wear while delivering outstanding efficiency over a wide range of medium to heavy slurry applications. With many unique features, the K-MP™ pump is easy to maintain and is designed to offer the lowest cost of ownership.

SPECIFICATIONS

  • Range: 50 mm (2”) to 150 mm (6”)
  • Flows to: 1,150 m³/hr (5,063 USgpm)
  • Heads to: 85 m (278 ft)
  • Pressures to: 800 kPa (116 psi)

APPLICATIONS

  • Mineral processing
  • Chemical processing
  • Coal preparation
  • Effluent handling
  • Gravel & sand

FEATURES

  • Modular design for ease of maintenance
  • Heavy duty one piece volute casing with lifting points for easy maintenance
  • Standard or advanced K-IBA™ bearing assembly improves reliability to extend bearing life reduce lubrication costs
  • Shaft sealing for increased reliability, stuffing box, expeller, K-ES™ elevated seal or K-ISS™ mechanical seal options available
  • Standard or advanced K-HEE™ impeller design options available
  • Single piece sleeve for stuffing box sealing, lowers stock holding and maintenance
  • Incorporates strengthening ribs cast on casing for increased pressure rating
  • Segmented volute clamp ring allows casing rotation to any required position
  • Casings fitted with inspection/flushing hole as optional extra
  • Multi-purpose design allows for reduced inventory requirements and interchangeability
  • Belt guards allows for ease of maintenance and inspection of belt condition

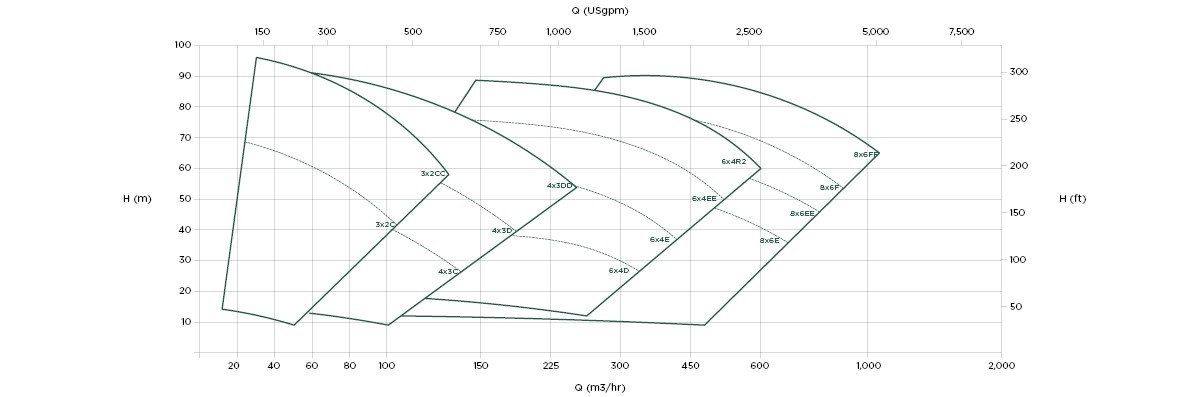

K-MP™ Series Coverage Chart
